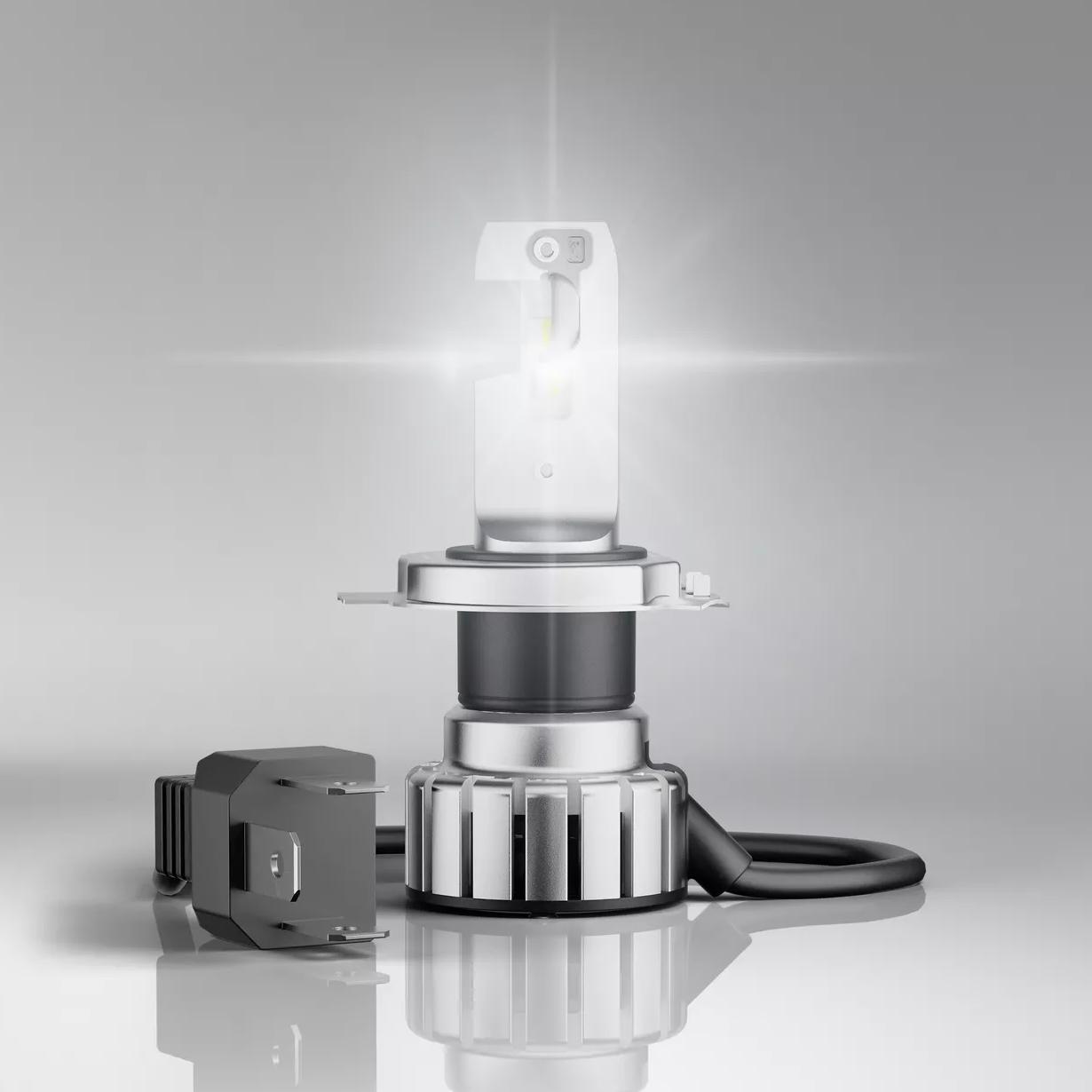

NIGHT BREAKER LED SMART H4
Exceptionally bright, innovatively compact, widely applicable, broadly compatible, particularly durable and, of course, street-legal1) That’s the new NIGHT BREAKER LED SMART from OSRAM.
Technical Data
Product information
Product legal advice 1
1) Approved LED light source - only applies to the respective countries in which there is approval or to which an equivalent approval applies and the vehicle models and light functions currently listed in the compatibility list. For more details see www.osram.com/nb-led
Product legal advice 2
2) In comparison to the minimum requirements of ECE R112, while the glare is below the maximum permissible values by up to 50%
Product legal advice 3
3) In comparison to traditional Halogen lamps
Product legal advice 4
4) For precise conditions please refer to: www.osram.com/am-guarantee
Application (Category and Product specific)
High and low beam
General Product Information
Global order reference
64193DWNBSM-1HB
Electrical Data
Nominal voltage
12.0 V
Power input
21.0 / 20 W
Test voltage
13.2 V
Power input tolerance
±15 %
Photometric Data
Light color LED
Cool white
Color temperature
6000 K
Nominal luminous flux
1650/1000 lm
Luminous flux tolerance
±15 %
Physical Attributes & Dimensions
Product weight
73.00 g
Length
84.0 mm
Lifetime Data
Lifespan Tc
3000 hr
Lifespan B3
1500 hr
Capabilities
Technology
LED
Certificates & standards
Standards
ABG
Environmental & Regulatory Information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Primary article identifier
4062172398114
Candidate list substance 1
Lead
CAS No. of substance 1
7439-92-1
Safe use instruction
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration no. in SCIP database
f511ef2c-edb6-4922-bf42-37f7d6d0ca27
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
---|---|---|---|---|---|
4062172398114 |
HFB
| 1 | 91mm x 56mm x 162mm | 137.00g | 0.83dm³ |
4062172398121 |
VS
| 4 | 195mm x 125mm x 180mm | 647.00g | 4.39dm³ |
