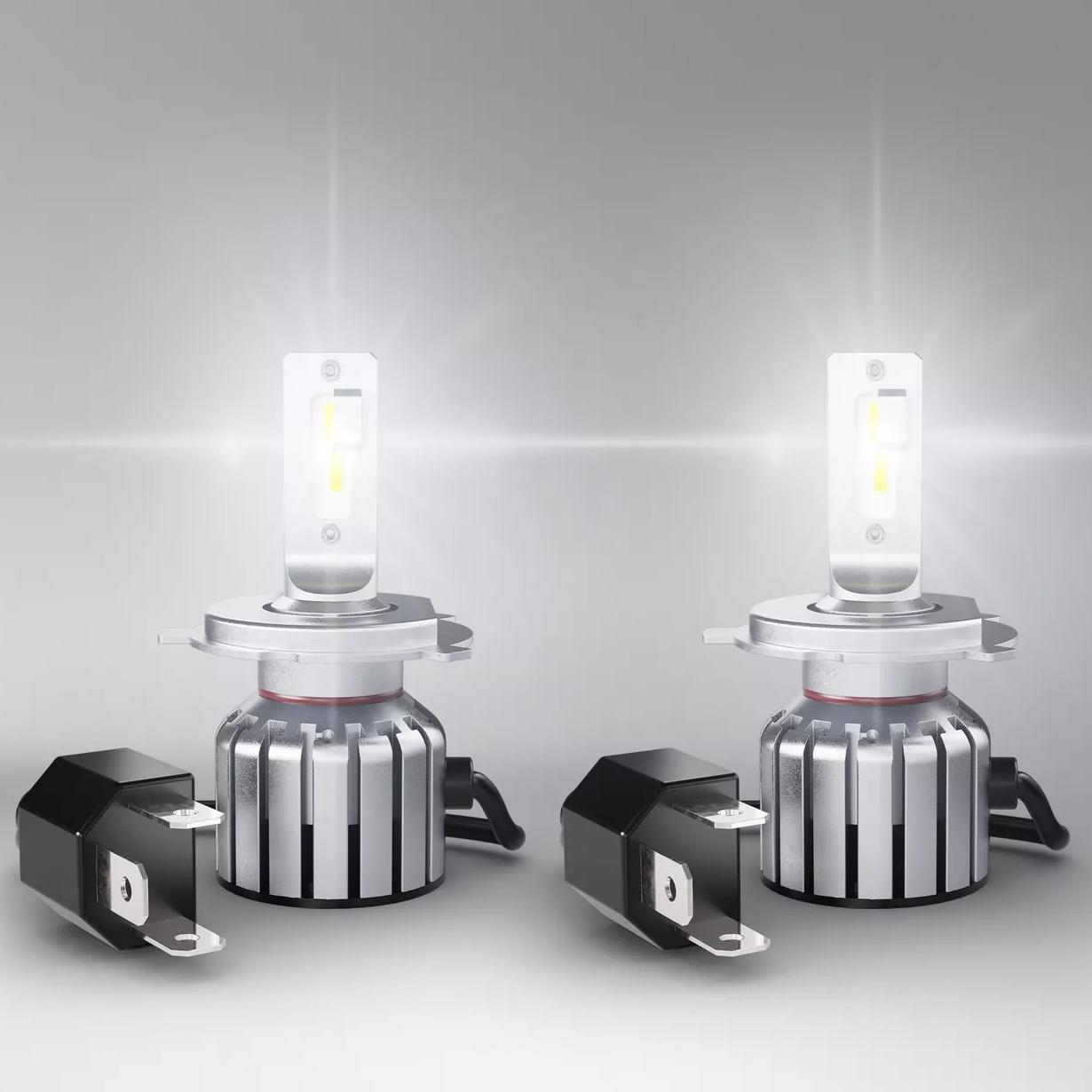

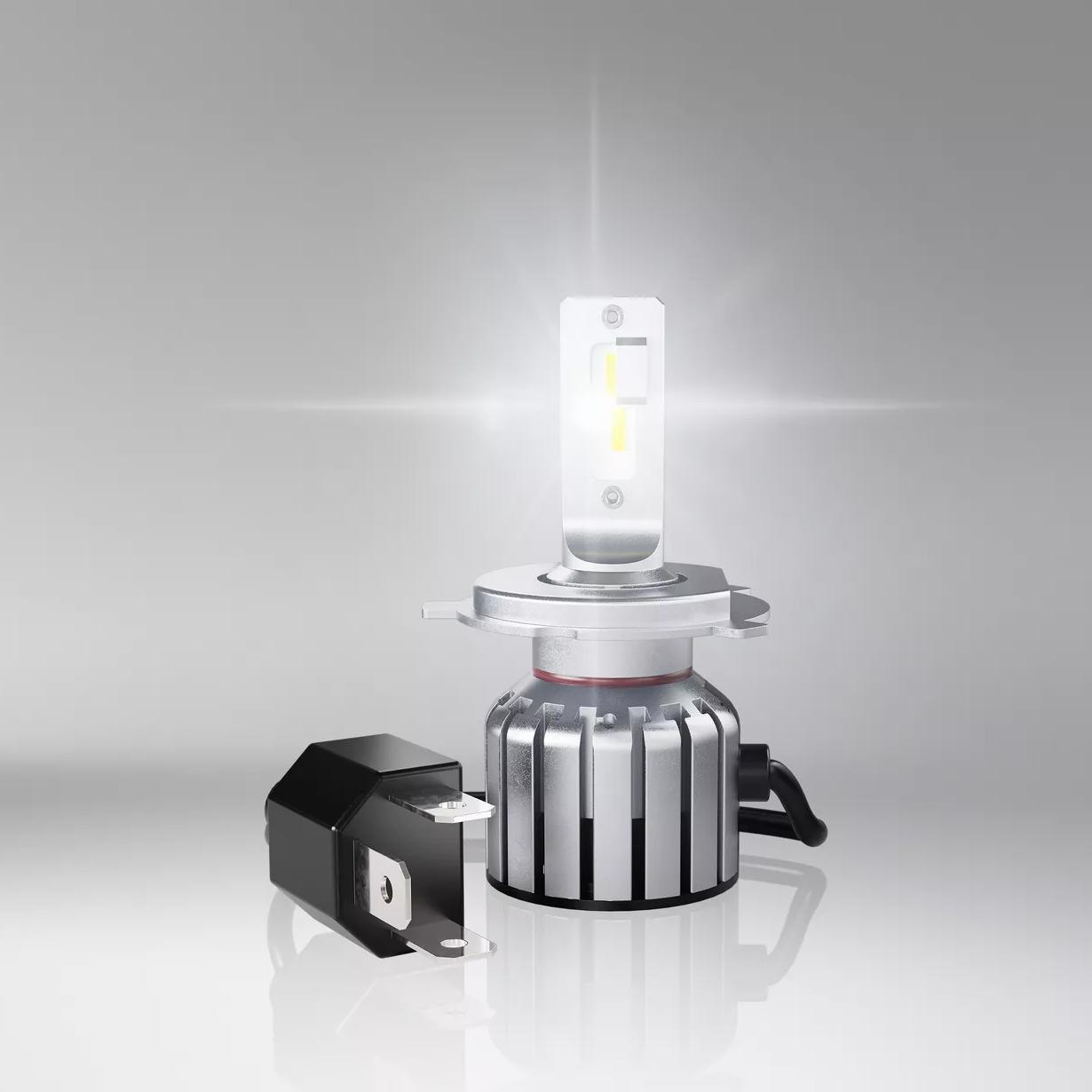

LEDriving HLT BRIGHT H4
H4 LED replacement for 24V
LEDriving HLT BRIGHT replacement lamps offer a modern and intense light with a color temperature of up to 6,000 Kelvin. These replacement lamps are suitable for conventional H4 high and low beam lamps. LEDriving HLT BRIGHT for high and low beam off-road applications are 24 V compatible and stand out with superior brightness, high compatibility, easier installation due to integrated driver and no radio disturbance. The pair of lamps comes with a 4-year OSRAM guarantee. For precise guarantee conditions please refer to www.osram.com/am-guarantee.These products do not have ECE approval and must not be used on public roads in any exterior application. Public roads use leads to cancellation of operating license and loss of insurance coverage. Several countries forbid sale and use of these products. Please contact your local distributor for further information.
Technical Data
Product information
Product type (off-road vs. on-road)
Off-road ≙ H4
Application (Category and Product specific)
Mainly used for Low Beam, High Beam and Fog light applications
General Product Information
Global order reference
64196DWBRT
Electrical Data
Power input
15/15 W
Nominal voltage
24.0 V
Nominal wattage
15 W
Power input tolerance
±20 %
Test voltage
28.0 V
Photometric Data
Nominal luminous flux
1200/1500 lm
Luminous flux tolerance
±20 %
Light color LED
Cool white
Color temperature
6000 K
Physical Attributes & Dimensions
Lamp base
P43t
Length
80.2 mm
Diameter
14.0 mm
Product weight
80.00 g
Lifetime Data
Lifespan Tc
2000 hr
Guarantee
4 years
Capabilities
Technology
LED
Environmental & Regulatory Information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of declaration
16-08-2024
Primary article identifier
4062172379779
Declaration no. in SCIP database
In work
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
---|---|---|---|---|---|
4062172379779 |
FS
| 2 | 136mm x 56mm x 162mm | 261.00g | 1.23dm³ |
4062172379786 |
VS
| 8 | 240mm x 148mm x 182mm | 1170.00g | 6.46dm³ |
